Olympus MSPlan 5x/0.13 ∞/-
Compatibility
- Parfocal length: 45mm DIN
- Thread: RMS
- Infinity corrected, f=180mm
Not fully corrected, should be used with WHK eyepieces or NFK photo-eyepiece and the right tube lens found in the BH2-MA or BH2-UMA.
Specifications
- Magnification: 5x
- Numerical Aperture: 0.13
- Working Distance: 21.10mm
- Coverslip Thickness: -
- Field Number: 26.5mm
- Correction level: Achromat
- Focal Length: 35.9mm
- Original Price: $552.00
- Lens groups: 4

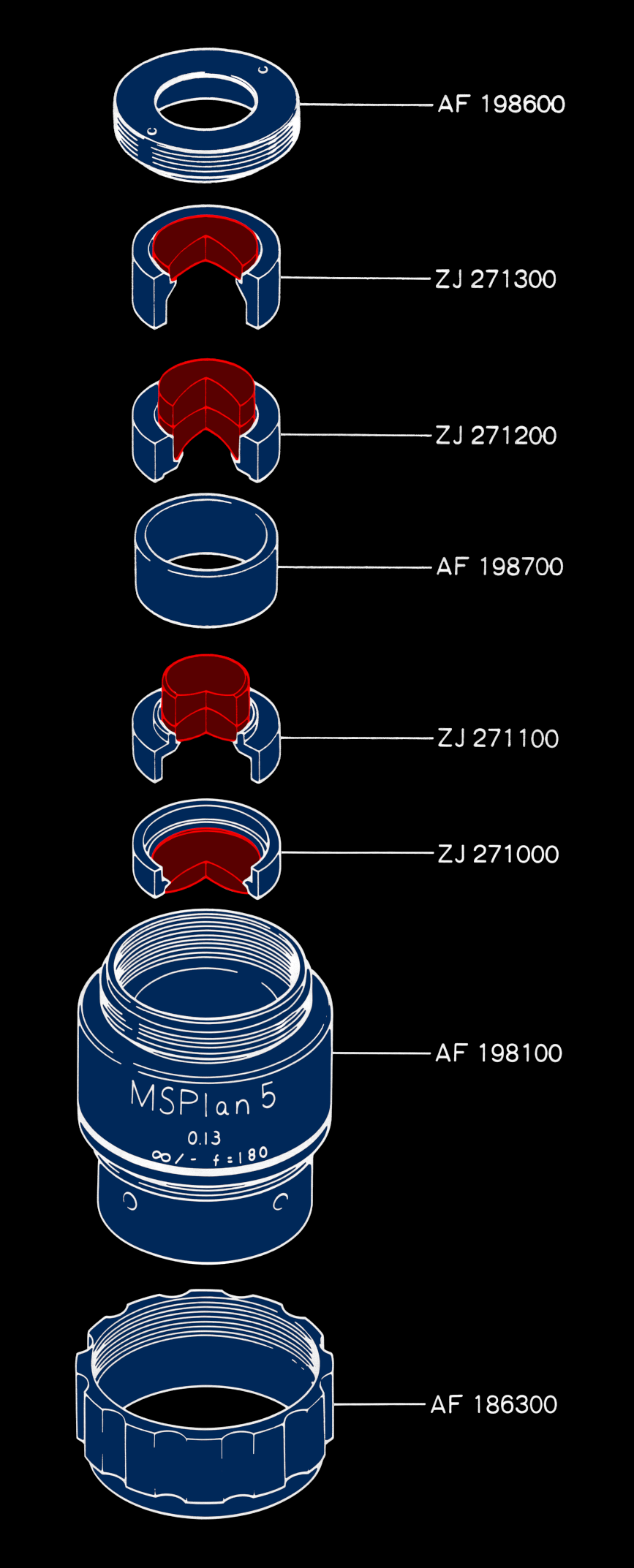

Exploded parts diagram
