Olympus MDPlan 5x/0.10 ∞/-
Compatibility
- Parfocal length: 45mm DIN
- Thread: RMS
- Infinity corrected, f=180mm
Not fully corrected, should be used with WHK eyepieces or NFK photo-eyepiece and the right tube lens found in the BH2-MA or BH2-UMA.
Specifications
- Magnification: 5x
- Numerical Aperture: 0.10
- Working Distance: 19.00mm
- Coverslip Thickness: -
- Field Number: 20.00mm
- Correction level: Achromat
- Focal Length: 36mm
- Original Price: $500.00
- Lens groups: 3

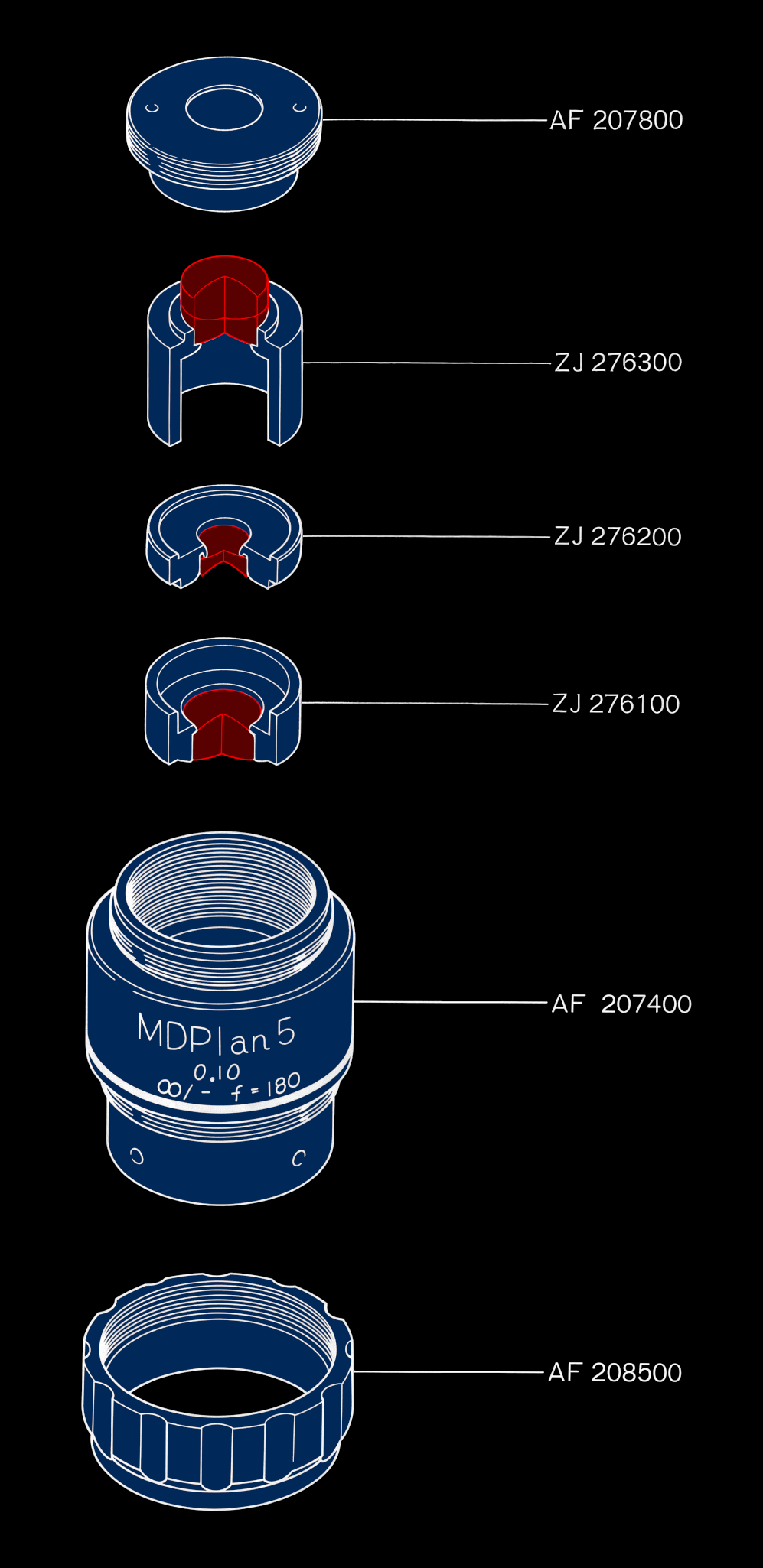

Exploded parts diagram
References
From allanwood.net:
